Types of Port Cranes

Introduction
Ports are the lifeblood of global trade, serving as crucial hubs where goods are transferred between land and sea transportation. At the heart of every bustling port lies a variety of port cranes, the unsung heroes that ensure the seamless movement of cargo. These mighty machines are the workhorses of the port, handling everything from massive containers to delicate and valuable goods.
They are responsible for loading and unloading ships, efficiently transferring goods to and from vessels, and enabling the smooth flow of international commerce.
Today we will take an in – depth look at the different types of port cranes, exploring their unique features, functions, and the roles they play in keeping our ports running efficiently.
The Backbone of Ports: Mobile Harbor Cranes

Mobility and Flexibility
Mobile harbor cranes are the epitome of versatility in port operations. Equipped with wheels or tracks, these cranes can be easily moved around the port area. Their mobility allows them to access different berths, ships of various sizes, and areas within the port yard with relative ease. This is in contrast to some fixed – position cranes that are restricted to a single location. They can be driven along the quay, reaching areas that might be difficult to access for other types of cranes, and can even be used in areas where the installation of permanent crane infrastructure is not feasible. This flexibility in movement significantly increases the efficiency of port operations, as it reduces the time spent waiting for a crane to become available at a particular location.
Versatile Cargo Handling
One of the most remarkable features of mobile harbor cranes is their ability to handle a wide variety of cargo. They can be fitted with different types of lifting attachments, such as hooks for general cargo, grabs for bulk materials like coal, grain, or sand, and specialized spreaders for containers. This adaptability means that they can handle everything from large – scale industrial machinery to small – scale consumer goods. In a port that deals with a mix of containerized cargo, break – bulk cargo, and bulk commodities, a mobile harbor crane can switch between handling tasks with relative ease.
Towering Giants: Quayside Container Cranes

Unmatched Height and Reach

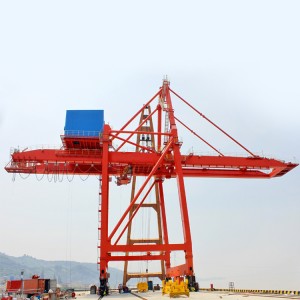

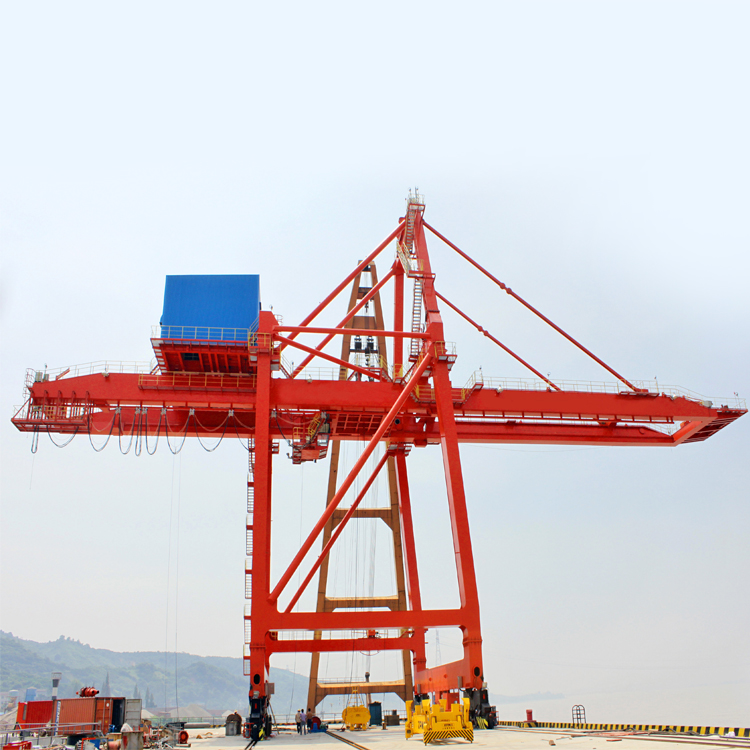

Quayside container cranes, also known as shore cranes or ship – to – shore (STS) cranes, are the behemoths of the port. They typically have a towering height, with some reaching up to 50 meters or more. Their most distinctive feature is the long, horizontal boom, or jib, which can extend far out over the ships. The length of the boom can range from 30 to 70 meters or even more in some of the larger models. This extended reach is crucial as it allows the crane to access containers located in the outermost parts of the ship, even on the largest container vessels.
High – Speed Operations
These cranes are designed for high – speed operations. They can rapidly lift and transfer containers between the ship and the shore. Modern quayside container cranes are equipped with powerful motors and advanced control systems that enable them to achieve high lifting and traveling speeds. The lifting speed can be as fast as 60 – 120 meters per minute for loaded containers and even faster for empty ones. The trolley, which moves the lifting mechanism along the boom, can also travel at speeds of up to 200 – 300 meters per minute. This high – speed operation significantly reduces the time required to load and unload a ship. Their fast – paced operations are essential for keeping up with the demands of global trade, as they ensure that ships can be turned around quickly, reducing port congestion and enabling the efficient flow of goods through the port.​
Precision in Action: Rubber – Tired Gantry Cranes (RTGs)​

Yard – Specific Advantages​

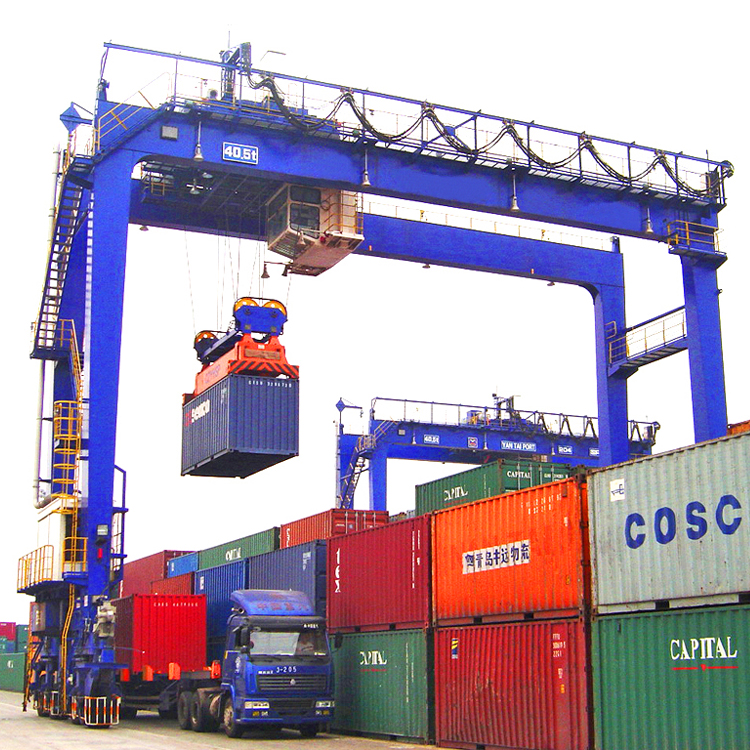

Rubber – Tired Gantry Cranes, or RTGs, are specifically tailored for container yard operations. Their most notable advantage is their mobility. Mounted on large rubber tires, these cranes can move freely within the container yard without the need for fixed tracks, unlike some other types of gantry cranes. This flexibility allows them to access different areas of the yard easily, adapting to the ever – changing layout of stacked containers and the movement of other yard equipment such as container trucks. They can also navigate around obstacles or work in areas with limited space, making them ideal for yards with complex or irregular layouts. Additionally, their ability to move laterally or even turn in place (in some advanced models) gives them an edge in tight – quarters operations.​
Stacking and Retrieving Efficiency​
RTGs are highly efficient when it comes to container stacking and retrieval. They are capable of stacking containers several layers high, typically up to 5 – 7 layers, which maximizes the use of vertical space in the container yard. This vertical stacking significantly increases the storage capacity of the yard, allowing ports to handle more containers in a relatively small area. When it comes to retrieving containers, the precise control systems of RTGs enable operators to quickly and accurately locate and pick up the desired container, even if it is buried deep within a stack. Advanced RTGs are equipped with features like automated container position detection and anti – sway control systems. The anti – sway control ensures that the container being lifted or moved remains stable, reducing the risk of collisions and enabling faster and more precise movements. Their high – speed lifting and traversing capabilities also contribute to overall efficiency, as they can move containers between different stack locations or onto waiting trucks in a timely manner.​
The Power of Adaptability: Floating Cranes​
Function in Challenging Environments​
Floating cranes, also known as crane ships or floating derricks, are a unique type of port crane designed to operate on water. Their primary function is to perform lifting and loading operations in marine environments, where traditional land – based cranes are not feasible. These cranes are often used in ports for loading and unloading ships, especially in cases where the berth infrastructure is limited or when handling oversized or heavy – lift cargo.​
One of their most crucial applications is in bridge construction over waterways. For example, during the construction of a large – scale suspension bridge, floating cranes are used to lift and position the massive bridge components, such as the bridge girders and pylons. They can navigate to the exact location in the water where the components need to be installed, even in areas with strong currents or deep waters. In the construction of the Hong Kong – Zhuhai – Macau Bridge, large – capacity floating cranes played a vital role in assembling the bridge segments, which were transported by barges and then precisely lifted into place by the floating cranes.​
Floating cranes are also indispensable in maritime salvage operations. When a ship runs aground, sinks, or needs to be repaired at sea, floating cranes can be dispatched to the location. They can lift the sunken vessel or its parts out of the water for salvage or repair. In the case of a shipwreck, the floating crane’s powerful lifting capabilities can retrieve valuable cargo, equipment, or even the entire ship’s superstructure, depending on its size and the crane’s capacity. Additionally, in the oil and gas industry, floating cranes are used for installing and maintaining offshore platforms, lifting heavy equipment and modules onto the platforms in the open sea.​
Unique Design Features​
The design of floating cranes is optimized for their aquatic environment. They are typically mounted on a floating hull, which can be a barge – like structure or a self – propelled ship. The hull provides the necessary buoyancy to keep the crane stable while operating on water. To ensure stability, floating cranes often have a wide beam and a low center of gravity. This design feature helps prevent the crane from tipping over, especially when lifting heavy loads or operating in rough seas.​
Floating cranes are equipped with a variety of features to enhance their functionality. They have adjustable lifting heights, which can be adjusted according to the depth of the water, the height of the ship being serviced, or the requirements of the construction project. The cranes also have a 360 – degree rotation function, allowing the operator to position the load precisely. This rotation capability is crucial in situations where the crane needs to move the load from one side of the vessel to the other or to place it on a specific location on the shore or another ship. Some advanced floating cranes are also equipped with dynamic positioning systems. These systems use a combination of GPS, sensors, and thrusters to maintain the crane’s position accurately in the water, even in the presence of strong winds, currents, or waves. This ensures that the lifting operations can be carried out with high precision and safety, especially in challenging marine conditions.​
Conclusion​
In conclusion, each type of port crane – mobile harbor cranes, quayside container cranes, rubber – tired gantry cranes, and floating cranes – has its own distinct set of features and advantages. Mobile harbor cranes offer unrivaled mobility and versatility, making them suitable for a wide range of cargo – handling tasks in various port locations. Quayside container cranes are the powerhouses of container handling, with their towering height, extended reach, and high – speed operations that are essential for the large – scale and rapid transfer of containers in modern ports. Rubber – tired gantry cranes, on the other hand, excel in container yard operations, maximizing space utilization through efficient stacking and retrieval of containers. Floating cranes, with their unique design and functionality, are indispensable for operations in challenging marine environments, handling oversized and heavy – lift cargo, and contributing to major construction and salvage projects.​
Together, these different types of port cranes form the backbone of modern port operations. They work in harmony, each playing a crucial role in ensuring the smooth flow of goods in and out of ports.
