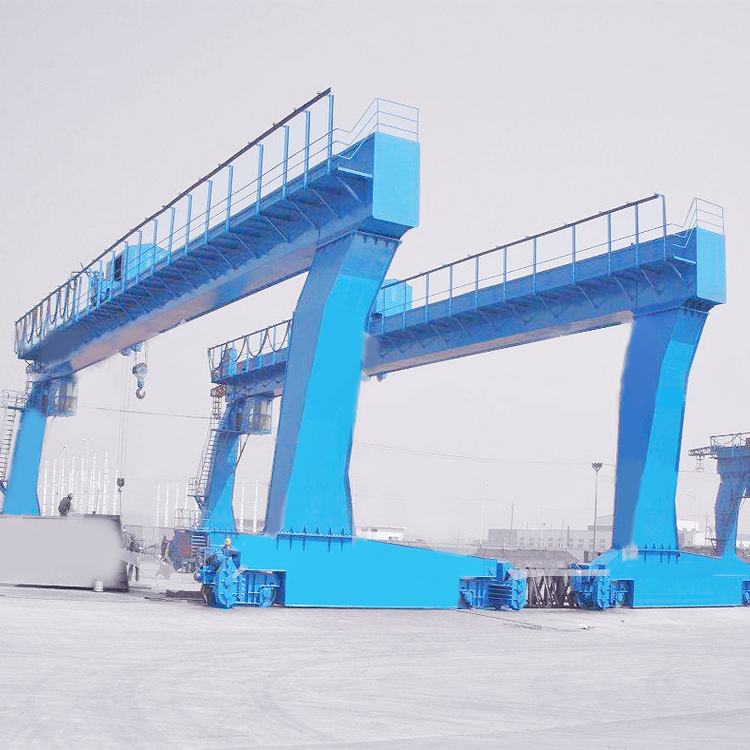

Gantry cranes are modified bridge cranes with a distinct gantry structure, offering unique operational capabilities across various fields.
Key Components
Metal Structure
This forms the crane’s skeleton, including a bridge (main beam and end beams) and a gantry framework (legs, cross – beams). It supports loads and the crane’s own weight. Main beams come in box or truss designs based on load needs.
Lifting Mechanism
The core for vertical load movement, it features a hoist (chain for light loads, wire – rope for heavy ones) powered by an electric motor. Safety limit switches prevent over – lifting.
Travel Mechanisms
Longitudinal travel lets the crane move along ground tracks; transverse travel allows the trolley (holding the hoist) to move across the main beam. Both use motors, gears, and wheels for smooth movement.
Working Principle
Gantry cranes operate via 3D movements. Longitudinal and transverse mechanisms position the lifting point over the load. The hoist then lifts the load, controlled via a cab or remote panel for precise relocation.
Types
General – Purpose
Common in construction and manufacturing, handling diverse loads with customizable capacities and spans.
Container
Specialized for ports, with rail – mounted (fixed rails, efficient stacking) and rubber – tired (mobile, flexible) subtypes.
Semi – Gantry
One side supported by a leg, the other by a structure, ideal for space – constrained areas like factories.
Applications
Ports: Load/unload ships, stack containers, move heavy equipment.
Manufacturing/Warehousing: Transport materials, handle machinery, optimize storage.
Construction: Lift steel, concrete, pre – fabricated parts on sites.
Safety
Training: Operators need certification, understanding controls and limits.
Maintenance: Regular checks of mechanics and electrical systems, plus lubrication.
Devices: Limit switches, emergency stops, and anti – sway systems ensure safety.
In short, gantry cranes are vital in many industries. Knowing their components, types, uses, and safety rules is key for those involved in their operation or purchase.
