Low Cost High Performance 10 ton Customized Double girder overhead crane

Short Description:

European double girder cranes have the advantages of decreasing customer investment, making full use of on-site space, improving production power, good combination, safety and reliability, and low failure rate.


  • Lifting capacity: 5-50ton
  • Span length: 10.5-31.5m
  • Lifting height: 6-12mtrs
  • Product Detail

    Product Tags

    Description

    banner5

    double girder overhead cranes offer special load capacity for a low deadweight. Strong and agile, its lifting capacity can up to 100 tons, it is particularly good tool for general manufacturing, workshops, warehouse and other assembly lines. The load hook can be raised between the two crane girders(beam), which permit huge lifting heights can be make it.

    double girder overhead cranes provide special load capacity for a low deadweight. Strong and agile, with lifting capacity(weight) can up to 100 tons, it is particularly good tool for general manufacturing, workshops, warehouse and other assembly lines. The load hook can be raised between the two crane girders(beam), which permit huge lifting heights can be make it.

    This series of products is matched with CMG series wire rope electric hoists.
    1. Design according to FEM1.001 and CMAA70 standards.
    2. Low deadweight can reduce investment layout,improve the lifting height.
    3. Crane girders can be adapted to building structure needs.
    4. Compact travelling hoist design, make crane have available height and space.
    5. End carriages with torsionally rigid, welded box-section design.
    6. To prevent the rail from gnawing, wheel group with adjustable structure.

    7. Based on different working conditions, overload limiter, height limiter, stroke limiter, and other security measures are equipped.

    8. Crane control can meet different application requirements: via radio control, pendant control or cab control (optional).

    9. Maintenance platform and accessible crab facilitate maintenance of building interior fittings (optional).
    10. Lifting capacity is non-standard customized, crane capacity can be produced according to clients’ needs.

    No
    Item
    Data
    1
    Lift capacity
    5-50ton
    2
    Lift height
    10.5-31.5m
    3
    Span
    6-12m
    4
    Crane travel length(warehouse length)
    Travel rails and bus bar
    5
    Local power supply
    380v/3p/50hz(could be customized )
    6
    Work duty
    A4
    7
    Lift speed
    0-8m/min
    8
    Cross travel speed
    0-20m/min
    9
    Long travel speed
    0-20m/min

    HYCrane VS Others

    crane Material

    Our Material



    1. The raw material procurement process is strict and has been inspected by quality inspectors.
    2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
    3. Strictly code into inventory.

    1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
    2. As shown in the picture, old equipment is often used for refurbishment.
    3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

    Other Brands Material

    Other Brands

    crane motor

    Our Material

    S

    1. Motor reducer and brake are three-in-one structure
    2. Low noise, stable operation and low maintenance cost.
    3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

    1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
    2. The price is low and the quality is very poor.



    a
    S

    other brand motor

    Other Brands



    crane wheel

    Our Wheels



    All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.





    s

    1. Do not use splash fire modulation, easy to rust.
    2. Poor bearing capacity and short service life.
    3. Low price.



    s
    S

    other brand wheel

    Other Brands



    crane Controller

    Our Controller

    1. Our inverters only make the crane run more stable and safe, but also the fault alarm function of the inverter makes the maintenance of the crane easier and more intelligent.
    2. The self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

    The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.

    other brand crane Controller

    Other Brands



    Application&Transport

    IT IS USED IN MANY FIELDS

    Satisfy the users' choice under different condition.
    Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.

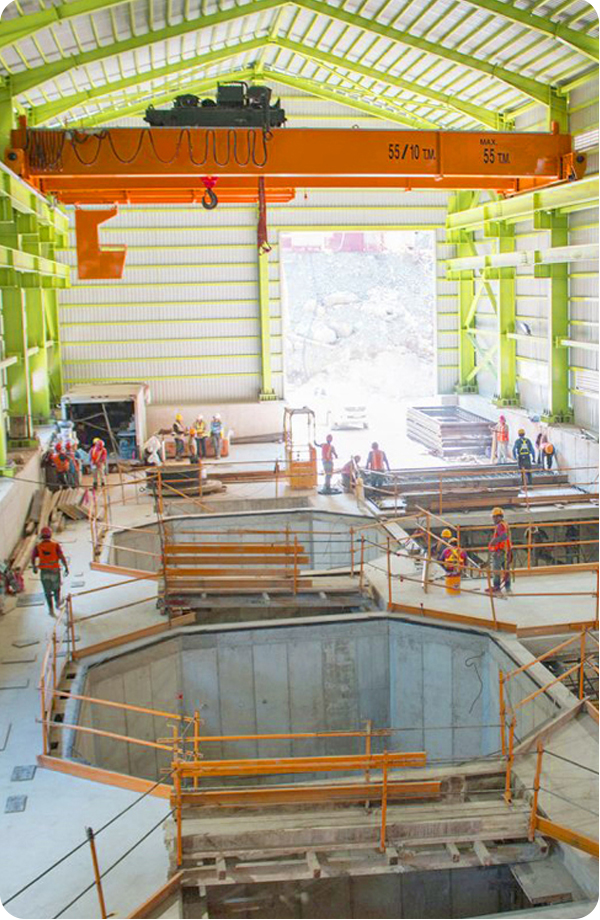

    overhead crane for Production Workshop

    Production Workshop

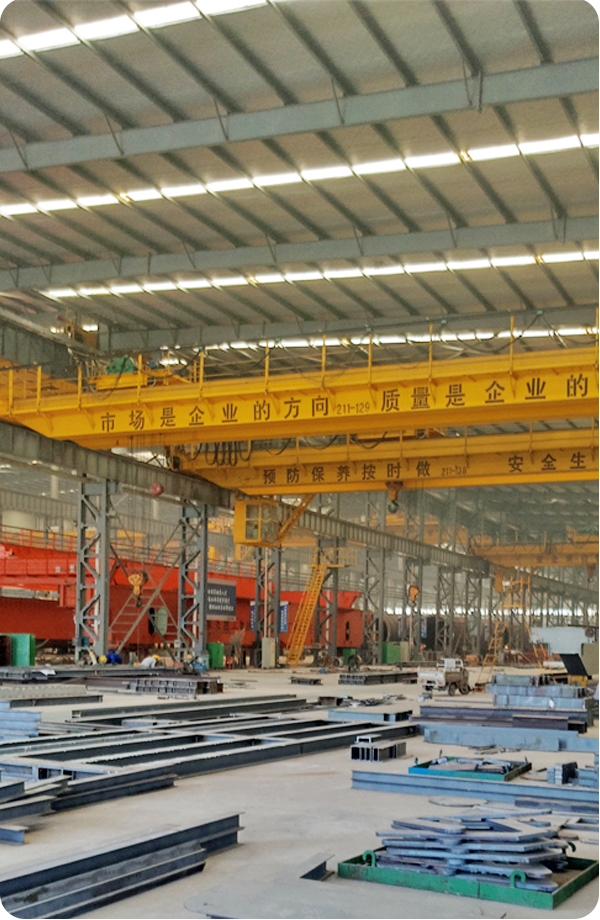

    overhead crane for Warehouse

    Warehouse

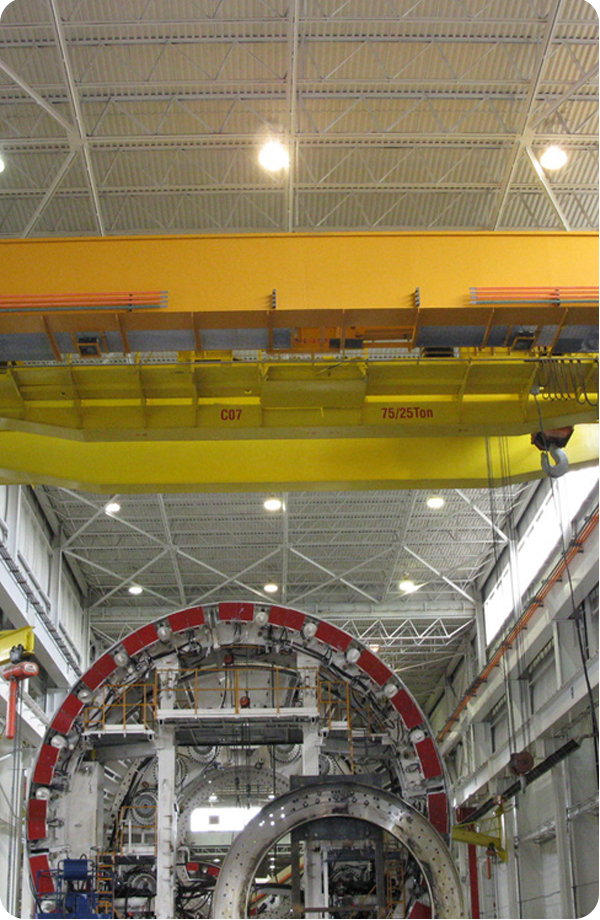

    overhead crane for Store Workshop

    Store Workshop

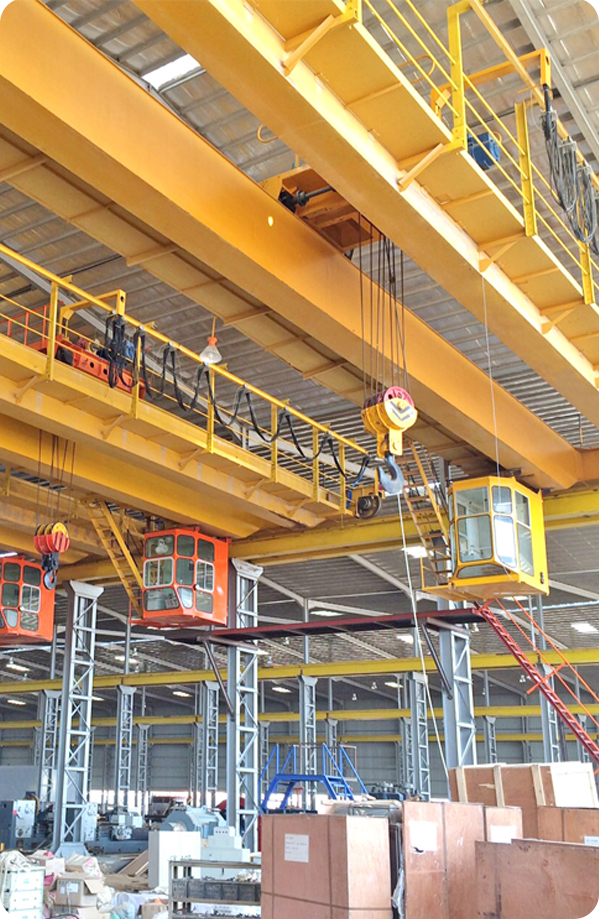

    overhead crane for Plastic Mold Workshop

    Plastic Mold Workshop

    PACKING AND DELIVERY TIME

    We have a complete production security system and experienced workers to ensure timely or early delivery.

    RESEARCH ANDDEVELOPMENT

    Professional power.

    BRAND

    Strength ofthe factory.

    PRODUCTION

    Years ofexperience.

    CUSTOM

    Spot isenough.

    Bridge crane loading
    crane cabin loading
    crane trolley loading
    crane beam loading

    Asia

    10-15days

    Middle East

    15-25days

    Africa

    30-40days

    Europe

    30-40days

    America

    30-35days

    By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.
