Jib cranes, also known as slewing cranes, are versatile lifting equipment widely used in various industries for their ability to rotate and extend to reach different areas. Here is a detailed introduction to their types and uses:
Types of Jib Cranes

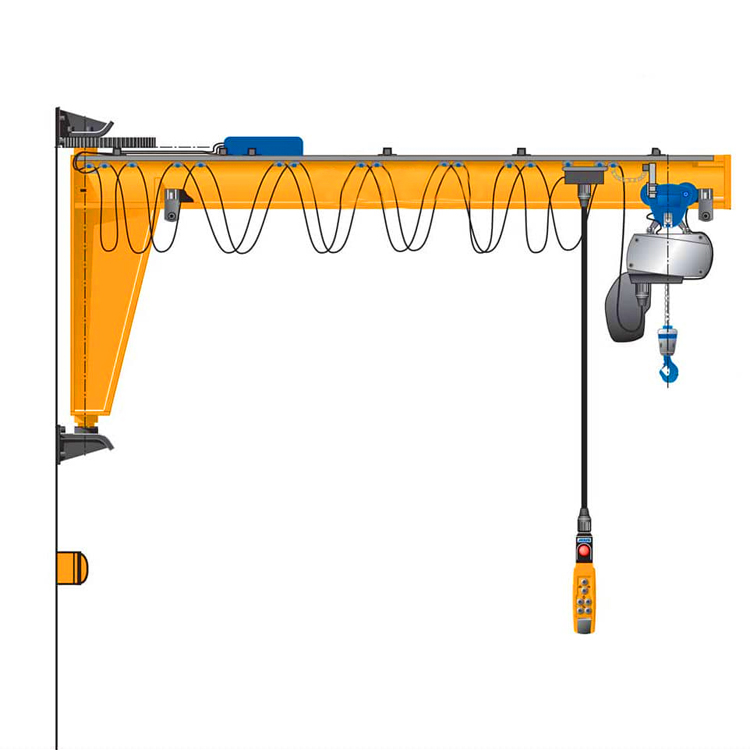

1. Wall-Mounted Jib Cranes
Structure: Fixed to a wall or column, with a boom that rotates horizontally (typically 180°–270°) around a vertical axis.
Key Features:
Space-saving, as they don’t occupy floor space except for the mounting structure.
Can be adjusted in height during installation to suit ceiling or building constraints.
Common Uses:
In workshops, warehouses, or production lines for lifting medium-weight materials (e.g., machinery parts, packages) within a limited radius.
In maintenance areas for equipment repair, where precise positioning is needed.
2. Freestanding (Floor-Mounted) Jib Cranes
Structure: Supported by a base fixed to the floor, allowing 360° rotation. The boom may be extendable or fixed in length.
Key Features:
Independent installation, suitable for open areas without wall/column support.
Often has a larger load capacity (ranging from 0.5 to 5 tons or more) and a wider working radius.
Common Uses:
In outdoor yards, construction sites, or large factories for handling heavy materials (e.g., steel beams, containers).
In logistics hubs for loading/unloading goods from trucks or storage racks.
3. Portable Jib Cranes
Structure: Mounted on wheels or a mobile base, enabling easy relocation. The boom is usually compact and foldable.
Key Features:
Highly flexible, ideal for temporary or multi-location tasks.
Lower load capacity (typically <1 ton) but convenient for on-the-go lifting.
Common Uses:
In construction sites for temporary material handling during different phases of a project.
In small workshops or garages for occasional lifting of engines, tools, or equipment.
4. Stationary Jib Cranes
Structure: Fixed in one position with no rotation, often used in specific scenarios requiring a linear lifting path.
Key Features:
Simple design, low cost, and high stability.
Common Uses:
In production lines where materials need to be lifted vertically at a fixed point (e.g., loading conveyor belts).
In mines or quarries for hoisting materials from pits to the surface.
5. Articulating Jib Cranes
Structure: Features a jointed boom (like a human arm) with multiple segments, allowing complex movements in three dimensions.
Key Features:
High maneuverability, capable of reaching tight or irregular spaces.
Common Uses:
In manufacturing for assembling parts in complex machinery where precise positioning is critical.
In automotive workshops for lifting engines or components in confined spaces.
Uses of Jib Cranes in Different Industries
1. Manufacturing and Production
Application: Lifting raw materials, components, or finished products between workstations, assembly lines, or storage areas.
Example: In a car factory, a wall-mounted jib crane may lift engine blocks onto assembly platforms.
2. Warehousing and Logistics
Application: Loading/unloading goods, moving pallets, or organizing inventory in warehouses.
Example: A freestanding jib crane in a distribution center lifts heavy boxes from trucks to storage racks.
3. Construction and Engineering
Application: Handling construction materials (e.g., steel, concrete blocks) on sites, or assisting in equipment installation.
Example: A portable jib crane is used to lift bricks to higher floors during building construction.
4. Maintenance and Repair
Application: Lifting heavy machinery parts (e.g., motors, gears) for inspection or replacement.
Example: In a shipyard, an articulating jib crane accesses hard-to-reach areas of a vessel for repairs.
5. Retail and Service Industries
Application: Handling goods in smaller settings, such as lifting heavy equipment in a workshop or garage.
Example: A portable jib crane in a tire shop lifts car wheels for replacement.
Key Advantages of Jib Cranes
Flexibility: Adapt to various environments and tasks, from fixed installations to mobile use.
Space Efficiency: Wall-mounted or compact designs minimize floor space occupation.
Precision: Enable accurate positioning of loads, crucial for delicate or heavy materials.
Cost-Effectiveness: Often more affordable than larger cranes while meeting specific lifting needs.
Considerations for Selection
Load Capacity: Match the crane’s rating to the maximum weight of materials lifted.
Working Radius: Ensure the boom length and rotation angle cover the required area.
Installation Type: Choose wall-mounted, freestanding, or portable based on site constraints and mobility needs.
By understanding these types and uses, industries can optimize material handling efficiency and safety with the right jib crane configuration.
