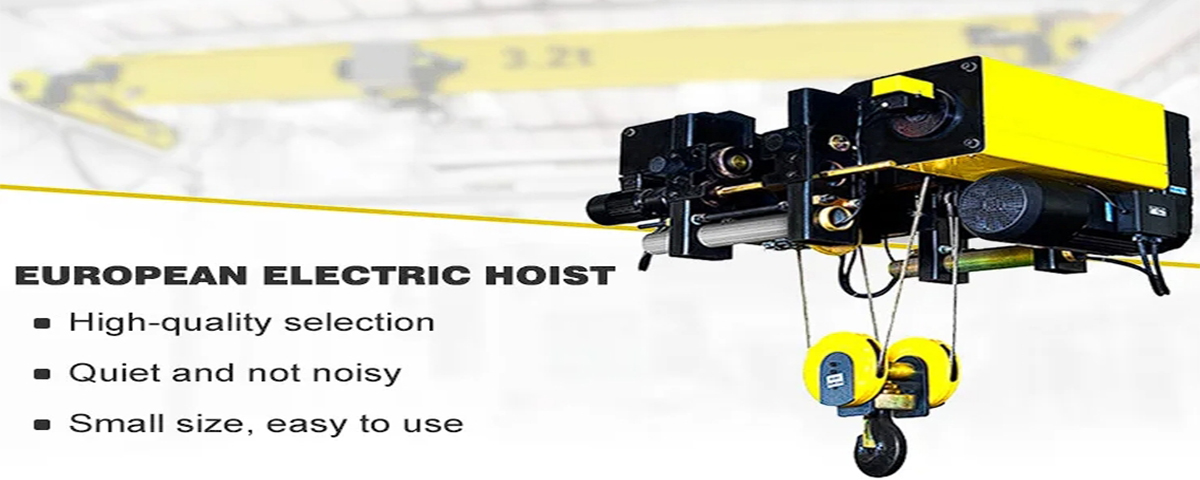

5Ton Euro Type Mobile Electric Hoist For European Overhead Crane

Short Description:

It is a newly developed hoist with advanced design technology according to the FEM standards and other regulations

The capacity: 0.3-32ton

Lifting height: 3-30m

Lifting speed: 0.35-8m/min

Send email to us

Product Detail

Product Tags

Description

Feature

Type ：European hoist，low headroom hoist

Application ：on the overhead cranes, gantra cranes or Jib cranes

Advantages ：small size, light weight, simple operation

Color : blue , yellow and so on

Voltage ：optional
Lifting hight ：6m-18m
Lifting weight ：2000kg

https://www.hyportalcrane.com/contact-us/

5Ton Euro Type Mobile Electric Hoist For European Overhead Crane

It employs motor of hoisting mechanism and reducer imported from Germany,the integrated and compact design of hoisting motor.reducer,reel and limit switch saves apace for the user.Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.

It has more and faster hoist speed and various pulley ratio which can be selected.the standard traveling mechanism of trolley is controlled by converter.

Features of 5Ton Euro Type Electric Hoist

1. High working efficiency; Excellent Performance, safe and Reliable

2. Smooth movement & comfortable operation;

3. Convenient maintenance & aesthetic painting;

4. Compact structure, light dead weight, light wheel load and reliable performance; 5. Efficient Transmission and power Source

6. customized: design and manufacture according to your request.

Lifting capacity(kg)	Work level/FEM	Work level/ISO	Hoisting height(m)	Hoisting speed(m/min)	Traveling speed(m/min)
1000	4M	9	5/0.8m/min	5/20m/min	188
1250	3	12	5/0.8m/min	5/20m/min	188
1600	2M	15	5/0.8m/min	5/20m/min	188
1600	2M	18	5/0.8m/min	5/20m/min	188
2000	3	9	5/0.8m/min	5/20m/min	178
2000	3	12	5/0.8m/min	5/20m/min	178
2500	2M	15	5/0.8m/min	5/20m/min	178
3200	BMG-5.0	18	5/0.8m/min	5/20m/min	178
5000	BMG-6.3	9	5/0.8m/min	5/20m/min	178
6300	BMG-6.3	12	5/0.8m/min	5/20m/min	178
8000	BMG-6.3	15	5/0.8m/min	5/20m/min	178
10000	BMG-6.3	18	5/0.8m/min	5/20m/min	178
12500	BMG-8.0	9	5/0.8m/min	5/20m/min	325
20000	BMG-8.0	12	5/0.8m/min	5/20m/min	325

Fixed TYPE

The hoists are not equipped with a trolley andused for applications where horizontalmovement is not required.

Low Headroom Trolley TYPE

These hoists are fitted with a trolley for loadsand are designed to make optimal use of theheight of lift and the limited space available.

Normal Headroom trolley TYPE

These hoists are fitted with a trolley and used forapplications where horizontal movement isrequired.

Double Girder trolley TYPE

These hoists are fitted with a trolley forhorizontal movement of loads and are designedto move particularly heavy loads.

Motor

The motor has F insulation level andprotection level IP54.1 .It has low current for start and large torque2.With soft starting and good performance in
speed up3.Have long service life.4.With high rotational speed and low noise

Limit switch

For lifting, trolley travelling and cranetravelling.And anti-collision deviceWeight overload protection , Currentoverloads protection, Voltage lowerprotection,etc

Rope guide

Standard rope guide is made andprocessed by engineering plastics withstrong abrasion resistance and goodself-lubricating performance, which greatlyreduces the wear of steel rope as mainforce safety components and thenenhances safety of hoisting mechanism

Safety monitor

It can implement many functions accordingto the demand of users1 Accumulated working time for lifting2.Over-heat protection of hoisting motor andalarm3.Overload protection and alarm4.Display fault information and maintenancetips.
