new safety device European standard electric wire rope hoist

Short Description:

It is a newly developed hoist with advanced design technology according to the FEM standards and other regulations

The capacity: 0.3-32ton

Lifting height: 3-30m

Lifting speed: 0.35-8m/min

Send email to us

Product Detail

Product Tags

Description

Feature

Type ：European hoist，low headroom hoist

Application ：on the overhead cranes, gantra cranes or Jib cranes

Advantages ：small size, light weight, simple operation

Color : blue , yellow and so on

Voltage ：optional
Lifting hight ：6m-18m
Lifting weight ：2000kg

https://www.hyportalcrane.com/contact-us/

Compared with the traditional electric wire rope hoist, European type electric wire rope hoist is a newly developed hoist with advanced design technology according to the FEM standards and other regulations. The new serial of wire rope electric hoist is environment-friendly, energy saving and cost-effective which ranks top among similar products.

Advantages:

1. Optimized design with FEM standard, with light and beautiful appearence.

2. Safe and efficient to operate, and meet current requirements of low noise and environmental protection.

3. Equipped with intelligent safe operation monitoring system which can uninterruptedly record working status and prevent unprofessional operations. And controller will perform a self-test before starting, including the power supply voltage level, default phase, button zero status and validity of each safety device.

4. Imported Motors, aluminum alloy drawing molding with excellent heat dissipation, and overheated protection and alarm function.

5. Maintenance-free design of whole body and less wearing parts make it convenient to maintain.

Rated load S.W.L (Kg)	Work level		Lifting Height	Lifting speed	traveling speed
	FEM	ISO	m	m/min	m/min
2000	1AM-4M	M3-M6	6/9/12/15/18	0.8/5	2~20
3200	1AM-4M	M3-M6	6/9/12/15/18	0.8/5	2~20
5000	1AM-4M	M3-M6	6/9/12/15/18	0.8/5	2~20
6300	1AM-4M	M3-M6	6/9/12/15/18	0.8/5	2~20
8000	1AM-4M	M3-M6	6/9/12/15/18	0.8/5	2~20
10000	1AM-4M	M3-M6	6/9/12/15/18	0.8/5	2~20
12500	1AM-3M	M3-M5	6/9/12/15/18	0.8/5	2~20
16000	1AM-3M	M3-M5	6/9/12/15/18	0.66/4	2~20
20000	1AM-3M	M3-M5	6/9/12/15/18	0.66/4	2~20

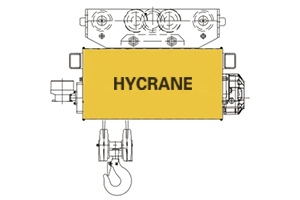

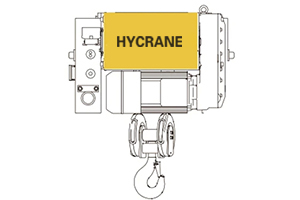

Fixed TYPE

The hoists are not equipped with a trolley andused for applications where horizontalmovement is not required.

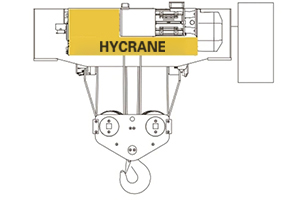

Low Headroom Trolley TYPE

These hoists are fitted with a trolley for loadsand are designed to make optimal use of theheight of lift and the limited space available.

Normal Headroom trolley TYPE

These hoists are fitted with a trolley and used forapplications where horizontal movement isrequired.

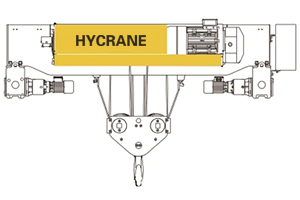

Double Girder trolley TYPE

These hoists are fitted with a trolley forhorizontal movement of loads and are designedto move particularly heavy loads.

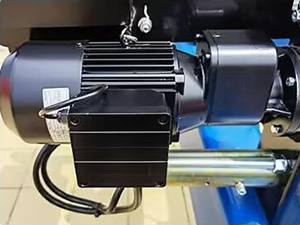

Motor

The motor has F insulation level andprotection level IP54.1 .It has low current for start and large torque2.With soft starting and good performance in
speed up3.Have long service life.4.With high rotational speed and low noise

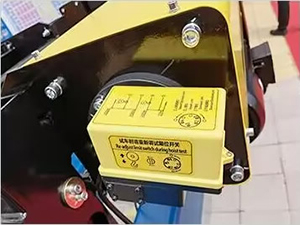

Limit switch

For lifting, trolley travelling and cranetravelling.And anti-collision deviceWeight overload protection , Currentoverloads protection, Voltage lowerprotection,etc

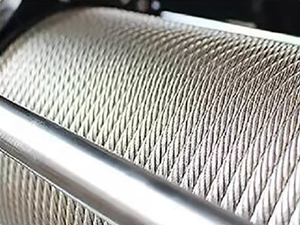

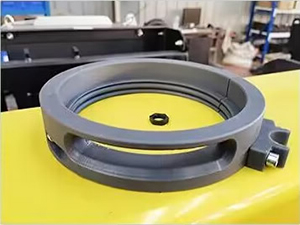

Rope guide

Standard rope guide is made andprocessed by engineering plastics withstrong abrasion resistance and goodself-lubricating performance, which greatlyreduces the wear of steel rope as mainforce safety components and thenenhances safety of hoisting mechanism

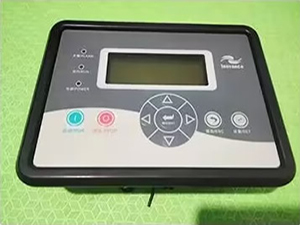

Safety monitor

It can implement many functions accordingto the demand of users1 Accumulated working time for lifting2.Over-heat protection of hoisting motor andalarm3.Overload protection and alarm4.Display fault information and maintenancetips.
