low failure single beam european style bridge crane

Short Description:

european crane utilized for medium to heavy fabrication. These overhead cranes are ideally suited to low buildings, where a high hook lift height is required.


  • The capacity: 0.25-30ton
  • The span: 7.5-32mtrs
  • Lifting height: 6-30mtrs
  • Product Detail

    Product Tags

    Description

    single-girder-overhead-crane
    european crane

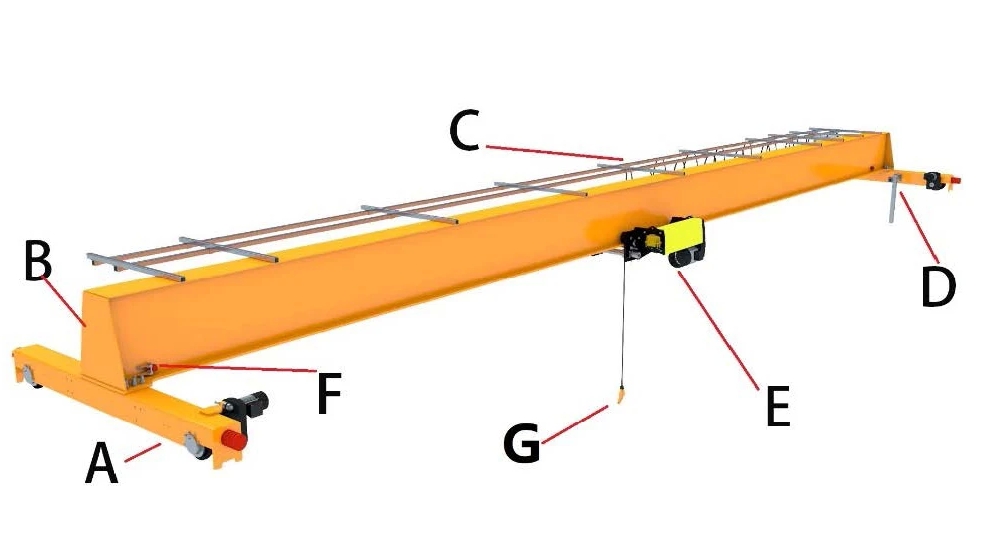

    The Main part for Single girder crane

    A. End carriages with driven motor

    B. Crane girder

    C. Festoon system and crane control pannels

    D. Crane power collecter frame

    E. Electric hoist F Troley stop G Pendent switch

    Single girde travelling cranes, which is also called as bridge crane, EOT crane, provide you at a particularly attractive price.


    Their excellent crane geometry ensures outstanding travel characteristics and reduces the load on building structures. We offer single girder travelling cranes with solid girdersin two variants:
    A .welded box-section design. B. rolled-profile girder. You also have the choice of controls: besides cable-connected control pendants, or radio controls offers safety, reliability and convenient operation. The cranes also offer outstanding design geometry, resulting in exceptional travel characteristics.
    Our PW series rope hoist, for example, is designed for crane applications. The entire crane installation meets your demands forimproved efficiency.

    Product Details

    drawing
    微信图片_20231025105802
    p1

    End beam

    1.Uses rectangular tube manufacturing module
    2.Buffer motor drive
    3.With roller bearings and permanent iubncation

    LD

    Crane Hook

    1.Pulley Diameter:125/0160/0209/0304

    2.Material:Hook 35CrMo

    3.Tonnage:3.2-32t

    LD beam

    Main Beam

    1.With strong box type and standard camber

    2. There will have reinforcement plate inside themain girder

    p2

    Europe Hoist

    1.Pendent & remote control
    2.Capacity:3.2-32t
    3.Height: max 100m

    Technical Parameters

    Lifting

    capacity(t)

    Span(m) Lifting

    height(m)

    Working

    duty

    Lifting speed

    (m/min)

    Cross travelling

    speed(m/min)

    Long travelling

    speed(m/min)

    Hoist

    weight(kg)

    1 7.5-22.5 6,9,12 2m/A5 0.8/5 2-20(VFD) 3-30(VFD) 405
    2 7.5-22.5 6,9,12 2m/A5 0.8/5 2-20(VFD) 3-30(VFD) 405
    3.2 7.5-22.5 6,9,12 2m/A5 0.8/5 2-20(VFD) 3-30(VFD) 405
    5 7.5-22.5 6,9,12 2m/A5 0.8/5 2-20(VFD) 3-30(VFD) 500
    10 7.5-22.5 6,9,12 2m/A5 0.8/5 2-20(VFD) 3-30(VFD) 640
    12.5 7.5-22.5 6,9,12 2m/A5 0.66/4 2-20(VFD) 3-30(VFD) 740



    Application

    IT IS USED IN MANY FIELDS

    Can satisfy the users' choice under different condition.
    Usage: used in factories, warehouse, material stocks to lift goods, to meet the daily lifting work.

    1

    Production Workshop

    2

    Warehouse

    3

    Store Workshop

    4

    Plastic Mold Workshop
