Xinxiang HY Crane Co., Ltd.
about_banner

Products

Unique Design Europe Style Double Beam Overhead Crane

Short Description:

European double girder cranes have the advantages of decreasing customer investment, making full use of on-site space, improving production power, good combination, safety and reliability, and low failure rate.


  • The capacity: 5-350ton
  • The span: 10.5-31.5m
  • The working: A5-A6
  • Product Detail

    Product Tags

    Description

    europe type double girder overhead crane banner

    European type overhead cranes are known for their distinctive structural features, which provide several advantages in industrial applications.
    The structure of a European type overhead crane typically consists of double beam supported by end trucks, with a hoist and trolley system traveling along the beam. This design allows for efficient and flexible lifting and moving operations. The double beam provides a clear span, maximizing the workspace beneath the crane and enabling easy access to the load. The end trucks, equipped with wheels or tracks, ensure smooth and precise movement along the beam.
    One of the key advantages of a European type overhead crane is its high lifting capacity. The robust design and sturdy construction of the double beam allow it to handle heavy loads with ease. This makes it suitable for industries such as manufacturing, construction, and logistics, where lifting and transporting heavy objects are common requirements. The ability to lift and move heavy loads efficiently increases productivity and reduces manual labor.
    Another advantage of a European type overhead crane is its versatility. The hoist and trolley system can be customized to suit specific lifting needs. Different lifting attachments can be easily integrated, allowing the crane to handle various types of loads, from small components to large machinery. The precise control and smooth movements provided by the hoist and trolley system ensure safe and efficient material handling operations. This versatility makes European type overhead cranes a popular choice in diverse industrial environments.
    In the industrial sector, European type overhead cranes play a significant role due to their reliability and efficiency. They are widely used in industries such as manufacturing, warehouses, and steel plants, where heavy lifting and material transportation are essential. The structural features of European type overhead cranes, combined with their lifting capacity and versatility, contribute to improved operational efficiency, reduced downtime, and increased safety.

    Advantage of Euro Design Overhead Bridge Crane:

    1.Cut Down Your Plant or Factory Building Investment.
    2.Improve Your Production Efficiency, Create More Value for Your Investment.
    3.Suitable different Operating Conditions, And Provide you One-Stop Solutions.
    4.Compact Design, Low Headroom, Safety With High Performance.
    5.Reduce Daily Maintenance, Easy Operation And Energy Saving.
    6.You will get a 30% Increasing Production upon using HY Cranes. Also it allows one people to perform the task of 3 or more people.

    MAIN DETAILS
    The Capacity 5ton to 350ton
    The Span 10.5m to 31.5m
    The Working Grade A5 to A6
    The Working Temprature -25℃ to 40℃

    Technical Parameters

    europe type double girder overhead crane schematic drawing
    Parameters of Europe Type Double Girder Overhead Crane
    Item Unit Result
    Lifting capacity ton 5-350
    Lifting height m 1-20
    Span m 10.5-31.5
    Working environment temperature °C -25~40
    Hoisting Speed m/min 0.8-13
    crab Speed m/min 5.8-38.4
    trolley Speed m/min 17.7-78
    Working system A5-A6
    Power source three-Phase A C 50HZ 380V

    Product Details

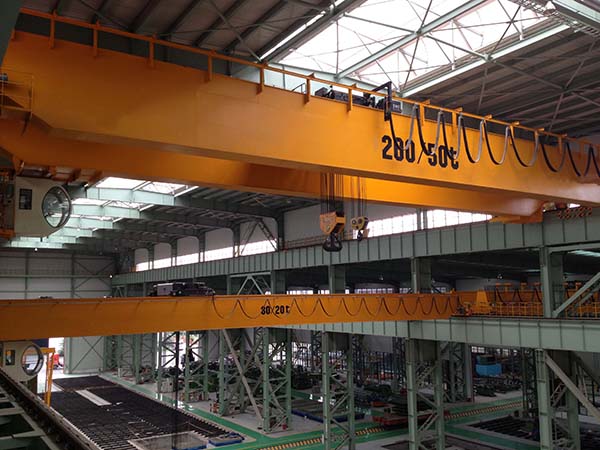

    double girder overhead crane 1

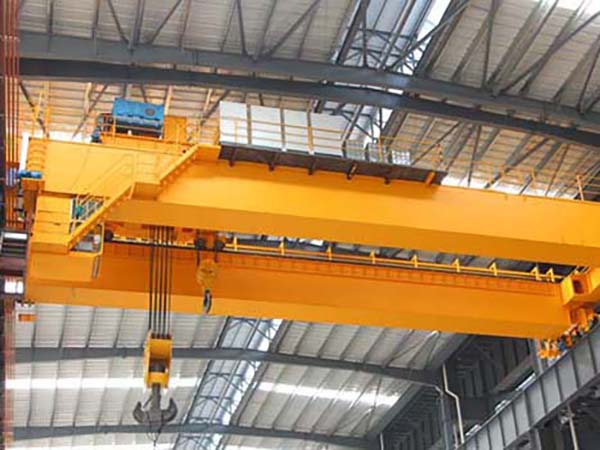

    double girder overhead crane 2

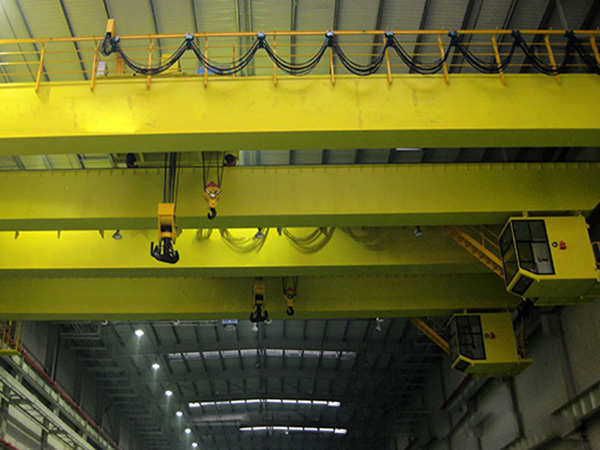

    double girder overhead crane 3
    europe type double girder overhead crane end beam

    01
    End beam
    ——

    1.Uses rectangular tube module
    2.Buffer motor drive
    3.With roller bearings and permanent iubncation

    02
    Europe Hoist
    ——

    1.Pendent & remote control
    2.Capacity:3.2-32t
    3.Height: max 100m

    europe type double girder overhead crane europe hoist
    europe type double girder overhead crane main beam

    03
    Main Beam
    ——

    1.With strong box type and standard camber
    2.There will have reinforcement plate inside themain girder

    04
    Crane Hook
    ——

    1.Pulley Diameter:125/0160/D209/0304
    2.Material:Hook 35CrMo
    3.Tonnage:3.2-32t

    europe type double girder overhead crane hook

    HYCrane VS Others

    Our Material

    Our Material

    1. The raw material procurement process is strict and has been inspected by quality inspectors.
    2. The materials used are all steel products from major steel mills, and the quality is guaranteed.
    3. Strictly code into inventory.

    1. Cut corners, originally used 8mm steel plate,but used 6mm for customers.
    2. As shown in the picture, old equipment is often used for refurbishment.
    3. Procurement of non-standard steel from small manufacturers, product quality is unstable.

    Other Brands

    Other Brands

    Our Motor

    Our Motor

    1. Motor reducer and brake are three-in-one structure
    2. Low noise, stable operation and low maintenance cost.
    3. The built-in anti-drop chain can prevent the bolts from being loosened, and avoid the harm to the human body caused by the accidental fall of the motor.

    1.Old-style motors: It is noisy, easy to wear, short service life, and high maintenance cost.
    2. The price is low and the quality is very poor.

    Other Brands

    Other Brands

    Our Wheels

    Our Wheels

    All wheels are heat-treated and modulated, and the surface is coated with anti-rust oil to increase the aesthetics.

    1. Do not use splash fire modulation, easy to rust.
    2. Poor bearing capacity and short service life.
    3. Low price.

    Other Brands

    Other Brands

    Our Controller

    Our Controller

    1. Our inverters make the crane run more stable and safe, and make the maintenance of the more intelligent and easy.
    2. The self-adjusting function of inverter allows motor to self-adjust its power output according to the load of the hoisted object at any time, thereby saving the factory costs.

    The control method of the ordinary contactor allows the crane to reach the maximum power after it is started, which not only causes the whole structure of the crane to shake to a certain degree at the moment of starting, but also slowly loses the service life of the motor.

    Other Brands

    Other Brands

    Transport

    PACKING AND DELIVERY TIME

    We have a complete production security system and experienced workers to ensure timely or early delivery.

    RESEARCH ANDDEVELOPMENT

    Professional power.

    BRAND

    Strength ofthe factory.

    PRODUCTION

    Years ofexperience.

    CUSTOM

    Spot isenough.

    europe type double girder overhead crane packing and delivery 01
    europe type double girder overhead crane packing and delivery 02
    europe type double girder overhead crane packing and delivery 03

    Asia

    10-15days

    Middle East

    15-25days

    Africa

    30-40days

    Europe

    30-40days

    America

    30-35days

    By National Station exporting standard plywood box,wooden palletor in 20ft & 40ft Container.Or as per your demands.

    europe type double girder overhead crane packing and delivery policy
